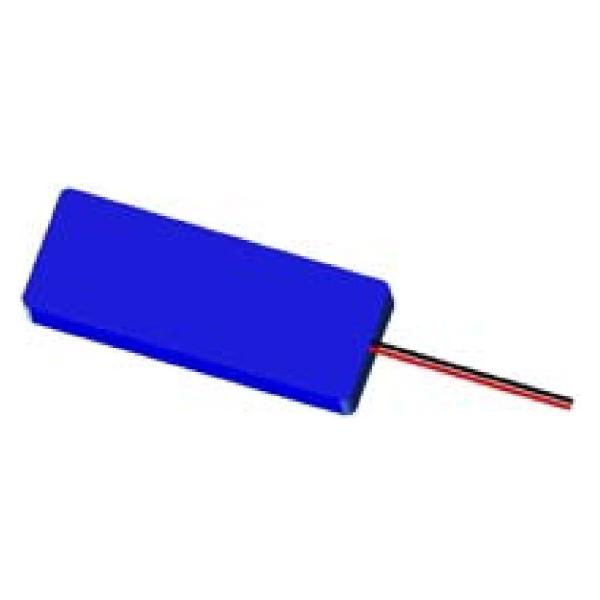

Rechargeable Li-ion Battery Pack INR18650 18.5V 5000mAh

Secondary INR 18650 Batteries Portable Searchlight Rechargeable Lithium Ion Battery Pack 18.5 V 5000mAh for Searchlight​





Electrical Specification:



Watt hour rating! 92.5Wh



Charging Method: Constant Current + Constant Voltage



Max. Charge Voltage [V]: 21V (4.2V/Cell)



Max. Continuous Charge Current: 4.0A



Rec. Charge cut off: 100mA or timer 3.0h



Max. Continuous Discharge Current: 7.5A



Rec. Discharge cut off: 12.5V (2.5V/Cell)



Internal Impedance: <200 mQ



Cycle Life: After 250 cycles, >60% of initial cap. (CHG 2.5A / DCHG 7.0A, 25±2°C)



Cell protection:



Over-charge Detection: 4.25V typical



Over-discharge Detection: 2.50V typical



Discharge Over-current Detection 1: 12Ato 20A typical



Charge Over-current Detection: 6Ato 10A typical



Charge / Discharge OverTemperature Detection: 65°C typical





Ambient Conditions:



Temperature Range

-Charge: 0 to +45°C -Discharge: -20 to +60°C

-Storage :

-10°C-35G<3 month

-10°C-30.,<12 month

Humidity: 40~85%RH, SOC: 45%~55%







Maintenance:



It Is recommended to charge the battery in 6 months after delivery or every 6 months. Consult Minmax for details.



Features:



1. High energy and power density

2. With sophisticated BMS/PCM safety circuit and wires

3. No memory effect and rechargeable

4. Reducing the battery replacement cost and maintenance risk with long life span



Application:



Portable Searchlight

Product Tags:

Searchlight 18.5 V Battery



5000mAh 18.5 V Battery



18.5 V 5000mah lithium ion battery
